SHOCKLOAD INSPECTION

CRITICAL
EVALUATION

Following a propeller strike resulting in damage to the propeller, it is absolutely imperative that rigorous diagnostic checks are executed to ensure that internal engine component damage has not occurred.

Warning: If an engine is operated after a propeller strike without these certified checks having been carried out, further catastrophic failure can destroy the engine entirely—often manifesting several hours post-incident.

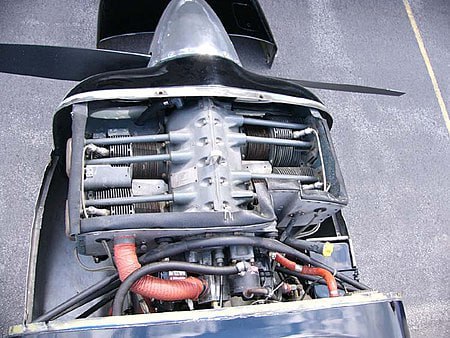

Engine Evaluation Process

MANDATORY SHOCKLOAD PROTOCOL

  • Propeller shaft, hub and gears NDT tested for cracks and run out
  • Gearbox casing in testing for cracks around the main bearing
  • Propeller shaft bearings are replaced
  • Crankshaft PTO end journal is tested for run out
  • Crankshaft magneto flywheel end journal is tested for run out
  • Crankshaft phasing checks are carried out
  • Woodruff key is checked for distortion and cracks
  • Crankshaft woodruff keyway is checked for cracks
  • Magneto flywheel is checked for cracks around the hub
  • Slipper clutch is checked for correct slipping torque
  • All bearings journals replacement and testing
  • Crankshaft and camshaft NDT testing and alignment check
  • Magneto overhaul execution
ENGINEERING NOTE: When a slipper clutch is fitted to the engine, the crankshaft and flywheel are generally protected. However, significant damage may still occur within the gearbox architecture, making the first five (5) checks in this protocol absolutely necessary.
